Automatic Banding Machine



TR-350 Film Banding Machinery

TR-350 Film Banding Machinery
TR-350 Film Banding Machinery
Product Introduction
TR-350K high speed automatic banding machine is the new product of our company which absorbs the latest technology at home and abroad

> Message

Product Description

Product Application

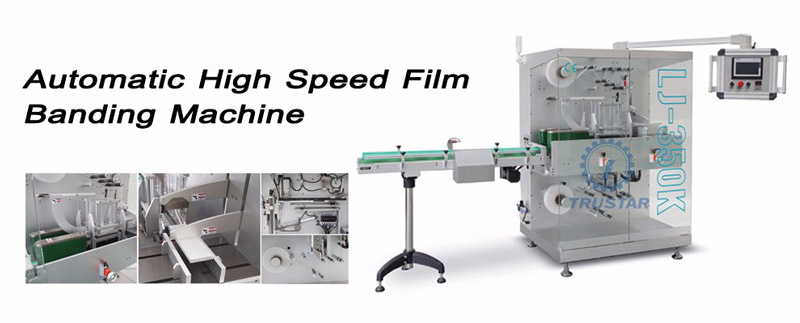

TR-350K high speed automatic banding machine is the new product of our company which absorbs the latest technology at home and abroad, which fills the gap of the end packaging for pharmaceutical companies. It can connect to the box opening, encasing, sealing machine to realize the complete packaging line. This machine and its parts adopt the full advanced design, and imported electrical elements, PLC, human man interface, it makes the whole machine performance more stable and reliable. It can be applied for the pharmaceutical, food, cosmetic area, and it completely meets with the CGMP requirements.
TR 350 Film Banding Machinery 2

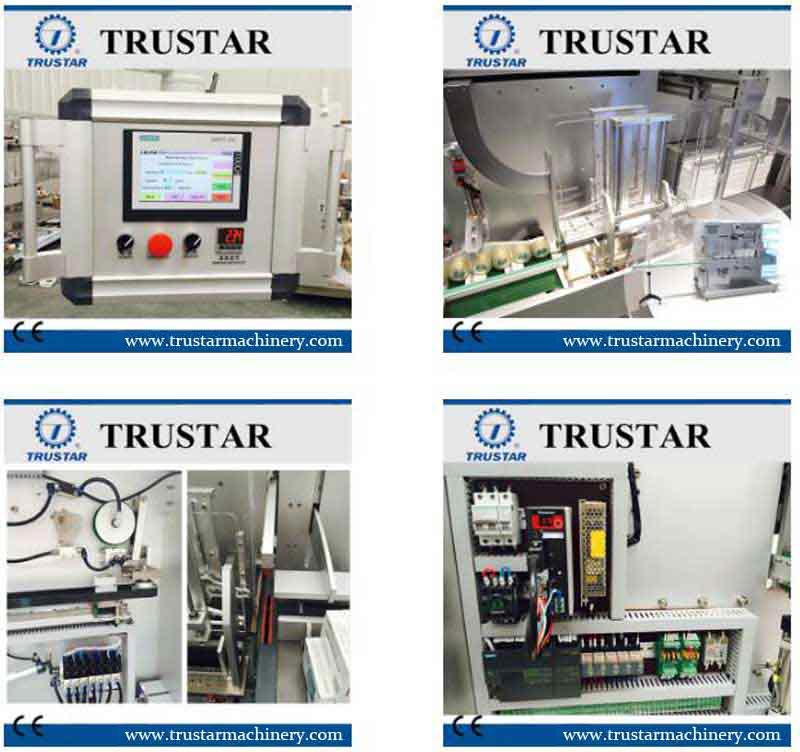

Machine details

TR 350 Film Banding Machinery 3




Machine Parameter

Banding Speed

15-25 pcs/min

Banding Size

Max: 240*150*300mm
Min: 50*60*90mm

Banding Material

PE film(width 30-80mm, thickness at 30-80 um)

Power Supply

220V 50Hz

Total Power

1.5Kw

Air pressure

0.06-0.08Mpa

Weight

500Kg

Conveyor Size

1300*250*800mm

Machine Size

1100*800*1600mm
